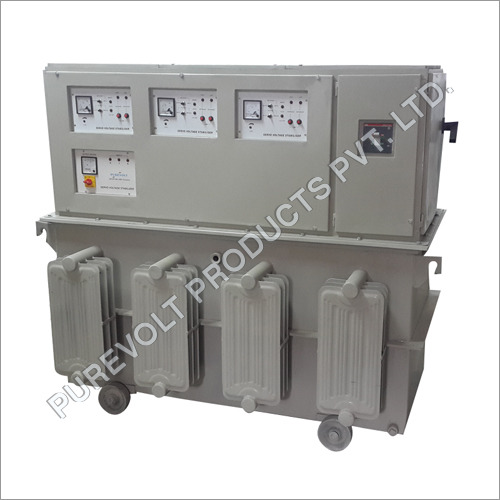

Air Cooled Servo Voltage Stabilizer
Air Cooled Servo Voltage Stabilizer
Air Cooled Servo Voltage Stabilizer is a programmed line current controlled, which utilizes synchronous engine in compact circle regulation, which is made as per the industrial standards utilizing superb parts and materials. This stabilizer is broadly utilized to regulate the current change in medical instruments and domestic appliances. Our air cooled servo voltage stabilizer is equipped with less current, short circuit and over loading safety.
We have exceptionally situated ourselves as a tried and true company, involved with assembling and providing an estimable gamut of Air Cooled Servo Voltage Stabilizer. Our stabilizer is widely utilized in such areas where constant and regulated current is strictly demanded.
Prime Characteristics:
- Completely mechanically IC supported firm state regulation circuit for simple online serviceability
- Uniquely outlined for successful working on DG set and mains
- Appropriate for 3 phase unsteady and stable loads and supply
Technical Specification
| Rating | 1 KVA to 100 KVA Single Phase & 3 KVA to 2000 KVA Three Phase |
| Input Voltage Range | 1 Phase 170V - 270V / 140V - 280V and 110V - 280V |
| 3 Phase 300V - 460V, 240V - 480V and 190V - 460V | |
| Output Voltage Range | 1 Phase 220 / 230 / 240 +/- 1% 3 Phase 380 / 400 / 415 +/- 1% |
| Output Waveform | True to Input |
| Input Frequency | 47 - 53 Hz |
| Response Time | 10 m. sec. |
| Correction Speed | As per IS 9815 |
| Correction Methods | Step less Correction Using Variac & Buck Boost Transformer |
| Cooling Natural | Air / Oil |
| Efficiency | Better Than 95 % |
| Control Circuit | Fully Automatic IC Based Solid State for easy on Line Serviceability |
| Duty Cycle | 100% |
| Operation | Auto / Manual |
| No Load Loss | Less than 1% |
| Compatibility to DG Set | Specially Designed for faithful operation on Mains as well as DG Set |
| Suitability | Suitable for 3 phase Unbalanced/Balanced Supply & Loads |
