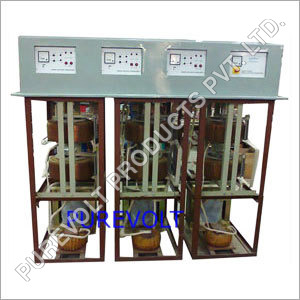

Voltage Stabilizer with Isolation Transformer

Get a Price/Quote

MOQ : 1 Piece

Voltage Stabilizer with Isolation Transformer Specification

Load Loss
<2% of rated capacity

Coil Material
Copper / Aluminium

Standard
IS 2026 / IS 9815 / IEC 60076

Cooling Type
Air Cooled and Oil Cooled

High Voltage
Up to 440V

Rated Voltage
220V / 230V / 415V

Capacity
1 kVA to 200 kVA

Voltage Booster Type
Automatic Voltage Regulation (AVR)

Dimension (L*W*H)
Customized as per rating; typical: 600*400*700 mm

Low Voltage
110V / 220V / 230V

Operating Temperature
-10C to 50C

Product Type
Isolation Transformer

Material
Steel

Output
Constant regulated output voltage

Frequency (MHz)
50 Hertz (HZ)

Efficiency
Up to 98%

Phase
Single Phase / Three Phase

Usage
Voltage regulation and electrical isolation for sensitive equipment

Coil Structure
Toroidal / Layer wound

Coil Number
Dual coil / Multiple coil options

Power Scope
Electric

Weight
Varies as per capacity (typically 25-150 kg)

Input Voltage Range
160V-270V or customized

Enclosure Type
Powder coated steel cabinet

Dielectric Strength
2.5 kV for 1 min

Protections
Overload, Short circuit, High/Low voltage cut-off

Applications
Hospitals, laboratories, CNC machines, industrial automation, IT equipment

Noise Level
Less than 50 dB

Mounting Type
Floor and Wall mountable

Display
Digital / Analog meter display

Response Time
<1 second

Insulation Class
Class B / Class F

Voltage Stabilizer with Isolation Transformer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Cheque

Supply Ability
100 Pieces Per Week

Delivery Time
2 Week

Packaging Details
Box

Main Export Market(s)
Middle East, Africa

Main Domestic Market
All India

About Voltage Stabilizer with Isolation Transformer

Voltage Stabilizer with Isolation Transformer

Voltage Stabilizer with Isolation Transformer balances out the input current and creates a dependable output current to the instruments.

Intended for interior working, this stabilizer is broadly utilized in electronic, textile and food based sector.

Some Of The Salient Attributes:

Primarily developed for interior constant operation
Simple to introduce at numerous places, our stabilizer is strong in design and possesses prolonged working life span
No moving components, quick response time, no relays and optimum precision

Technical Specifications:

CHARACTERISTICS	SINGLE PHASE	THREE PHASE Unbalanced / Balanced Type
Input Voltage	200 280 V AC 170 - 270 V AC 140 280 V AC 110 280 V AC	340 480 V AC 300 460 V AC 240 480 V AC 190 480 V AC
Output Voltage	220 / 230 / 240 V ± 1 %	380/400 / 415 V ± 1 %
Output Adjustable	220 240 V AC)	380 415 V AC
Connections	-	Star / Star
Frequency	47- 53 Hz
System Design	As per IS : 9815 : 1994
Insulation	Class B
Wave from Distortion	None
Effect of Load Power Factor	Nil
Type of Cooling	Air / Oil Cooled
Speed of Correction	>than 20 V / Sec
Regulation	± 1.0% from No Load to full load
Ambient Temperature	0° to 55°C
Environment	Designed for indoor continuous operation
Rating Available	1 KVA to 1500 KVA

Advanced Isolation and Protection

By integrating an isolation transformer, this voltage stabilizer provides exceptional protection against voltage surges, electrical noise, and system faults. The automatic voltage regulation (AVR) circuitry maintains a constant output, safeguarding connected devices and enhancing operational safety. Multiple protective features-overload, short circuit, and high/low voltage cut-off-ensure your equipment remains secure under varying electrical conditions.

Customizable and Versatile Installation

Designed for flexible deployment, this stabilizer suits both floor and wall mounting, with dimensions and weights tailored to capacity requirements. Its durable powder-coated steel cabinet and dual-phase capability (single/three-phase) make it a practical choice for diverse environments, from medical facilities to industrial settings. The digital or analog display options offer clear, real-time monitoring of operational parameters.

Efficient Performance for Sensitive Applications

With up to 98% efficiency, extremely low noise (<50 dB), and rapid response to electrical fluctuations, this stabilizer ensures continued performance across a wide temperature range (-10C to 50C). Enhanced dielectric strength, robust insulation (Class B/F), and advanced coil technology (copper/aluminium, toroidal/layer wound) support stable power delivery for sensitive equipment requiring precise electrical regulation.

FAQ's of Voltage Stabilizer with Isolation Transformer:

Q: How does the isolation transformer benefit sensitive equipment?

A: The isolation transformer electrically separates the connected equipment from power-line disturbances, reducing noise, surges, and potential interference. This protection is crucial for sensitive applications like medical devices, laboratory instruments, and IT equipment.

Q: What installation options are available for this voltage stabilizer?

A: The unit supports both floor and wall mounting, making it easy to integrate into various spaces such as hospitals, industrial plants, and commercial IT environments. The dimensions and weight can be customized based on the chosen rating and application.

Q: When should I use air-cooled versus oil-cooled versions?

A: Air-cooled stabilizers are ideal for standard environments where ventilation is adequate, while oil-cooled versions are recommended for higher-capacity installations or settings with elevated ambient temperatures, providing enhanced cooling and reliability.

Q: Where can I install this voltage stabilizer?

A: Thanks to its adaptable design and protection ratings, it can be installed in hospitals, laboratories, production lines, CNC operations, IT rooms, and automation facilities across India or internationally. Ensure there is sufficient space and ventilation for optimal performance.

Q: What process ensures voltage regulation and consistent output?

A: The stabilizer features automatic voltage regulation (AVR) which continuously monitors input fluctuations within a wide voltage range (160V-270V or customized) and rapidly adjusts the output, keeping it steady at the set voltage, with a response time of under one second.

Q: How is this product maintained for long-term reliability?

A: Regular inspection of electrical connections, ventilation, and cooling systems, as well as monitoring digital or analog displays for abnormal readings, will help maintain efficiency and extend the stabilizer's operational lifespan.

Q: What are the key benefits of using this voltage stabilizer with isolation transformer?

A: Key advantages include high efficiency, fast and precise voltage correction, comprehensive electrical protection, low operating noise, robust steel construction, and flexible mounting-all essential for ensuring uninterrupted operation of critical or sensitive equipment.
