Electrical Isolation Transformer

Name: Electrical Isolation Transformer
Brand: PUREVOLT PRODUCTS PVT. LTD.
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Electrical Isolation Transformer Specification

Load Loss
Low, designed for minimal loss

Low Voltage
110V / 220V / as required

Coil Material
Copper / Aluminium

Cooling Type
Air cooled / Oil cooled

Standard
IS 2026 / IEC 60076

Dimension (L*W*H)
Depends on kVA rating; e.g., 600x400x500 mm

Rated Voltage
110-690 Volt (V)

Capacity
1 kVA to 500 kVA

Operating Temperature
-10C to +45C

High Voltage
Up to 690V

Product Type
Isolation Transformer

Material
Metal

Output
Customizable depending on application

Frequency (MHz)
50 Hertz (HZ)

Efficiency
Over 95%

Phase
Single / Three Phase

Usage
Electrical equipment protection, power supply isolation, safety for sensitive appliances

Coil Structure
Toroidal / Layered

Coil Number
Double coil (Primary & Secondary)

Power Scope
Electric

Weight
Approx. 50 kg (varies with rating)

Electrical Isolation Transformer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Cheque

Supply Ability
100 Pieces Per Week

Delivery Time
2 Week

Packaging Details
Box

Main Export Market(s)
Middle East, Africa

Main Domestic Market
All India

About Electrical Isolation Transformer

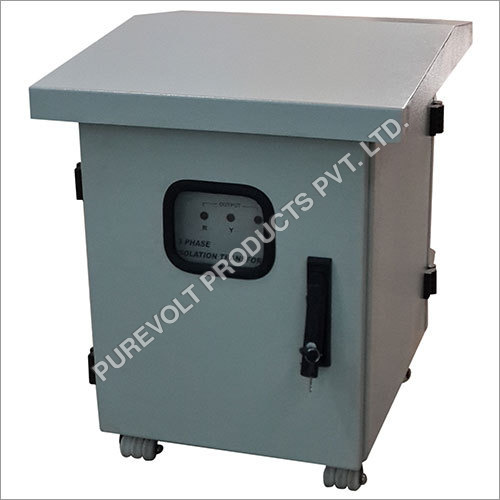

We have a team of self motivated and proficient professionals who helps us in manufacturing and supplying a quality range of Electrical Isolation Transformer. This transformer provides a perfectly balanced neutral output with zero surges and spikes. At our sophisticated production unit, we manufacture this transformer using high quality materials and components. This Electrical Isolation Transformer is a floor mounting model and housed in sturdy metal casing.

Key Features:

Provides the complete electromagnetic & electro static shielding
It is an energy saving electrical transformer which can convert the voltage as required
This transformer is light in weight, compact in size and has longer working life

Technical Information of Step Up Down Isolation Transformers
Input Range	Output Range	Ratings Available
415V AC 3-Ph	415 V AC 3-Ph	150VA 3-Ph and up to 1000 KVA 3-Ph
415V AC 3-Ph	220 V AC 3-Ph	150VA 3-Ph and up to 1000 KVA 3-Ph
230 V AC 1-Ph	230 V AC 3-Ph	150VA 1-Ph and up to 500 KVA 1-Ph
230 V AC 1-Ph	110 V AC 3-Ph	150VA 1-Ph and up to 500 KVA 1-Ph

General Specifications of Step Up Down Isolat Transformer
S. No	System Connections	Delta / Star or Star / Delta
01	Ratios	1:1 and 2:1
02	Regulation	Better than 3.5 %
03	Di-electric strength	2500 V AC for 120 Sec
04	Insulation resistance	More than 1000 Mega Ohms
05	Coupling Capacitance	0.1 PF for 100 db
06	Common Model attenuation	100 db
07	Construction Standards	As per IS 2026

We manufacture & export different types of Isolation and Insulation Transformers, which reduce the power line problems such as noise, surges, transients and spikes etc. The Power Insulation / Isolation Transformer contains two windings: Primary and Secondary, which are separated from each other and wound on the same iron core. The secondary governs the output, and separated from the input. The input and output are entirely independent of each other, except for the magnetic connection between these. The electrical isolation transformers help protect equipment, circuits and people from short circuits & shocks. They enable accurate, safe measurements, and protect individuals from faulty equipment.

Rating available: 1 KVA to 1000 KVA
Single and three phase, air and oil cooled
Special input and output voltage ranges are also available
