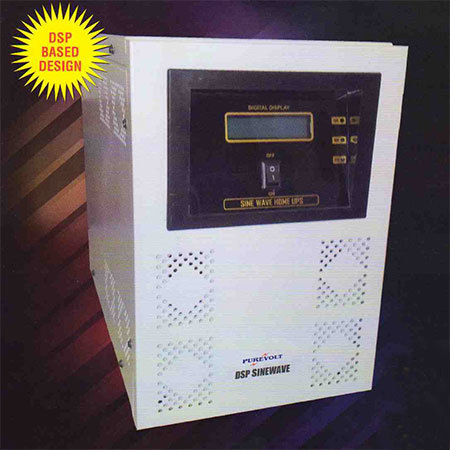

Sine Wave Ups

Sine Wave Ups
Sine Wave Ups
Product Code : 06
Brand Name : PUREVOLT PRODUCTS PVT. LTD.
Product Description

Sine Wave Ups

Sine Wave Ups possesses broad in-put current scope and near nil resistance on current change and frequency. Further, our UPS is obtainable with effective frequency and double change on-line advancement and broad input current scope. Our quality examiners test sine wave UPS on set quality grounds to offer a defect fresh gamut to the customers. Additionally, we provide our product at market leading costs.

In this domain, our company is considered as one of the reputed producers and providers of sine wave UPS, which is primarily utilized for phase-locking, filter out sound from energy grid and tracking.

Prime Attributes of Our Product:

  • Simple to install as well as possess shock tolerance structure
  • Deliver noise free and pure wave frequency to the instruments
  • Exceptional loading features and elevated current dynamic execution

RATING AVAILABLE : 1 KVA TO 10 KVA


Model

1 KVA

2 KVA

3 KVA

INPUT

Voltage

120 V at 30%, 140 V at 50% & 160, 295 V at 100%

Frequency

50 Hz (60 Hz) + - 2 %

OUTPUT

Voltage

220 V AC (230 V AC) + - 3%

Current

4.55 A

9.1 A

13.6 A

Frequency

50 Hz + - 5 %

Wave form

Sine Wave

THD

Linear Load < 3%Non Linear Load < 6%

Protection

General

Electronic protection for Output Overload, Short Circuit,Over Temperature, Battery Low & Over Charge.

Surge

IEEE527

EMI/EMC

EN50091-1

Noise

FCC.A

Alarm

Audible Mains Failure, Load on Battery, Inverter Fault

Overload Protection

> 130 % - 200 MS > 150 % - 10 MS

Transfer Time

0 MS

Battery

SMF Battery (Sealed Maintenance Battery)

External Battery Voltage

36 V DC

96 V DC

96 V DC

Ambient Temperature

0 - 40 Degree C

Humidity

30 ~ 95 % Non Condensing

Communication

9 Pin D type connector (RS 232)

Noise

0 ~ 55 DB (1 m)

Size (WXDXH) mm

145x405x220

195x455x350
