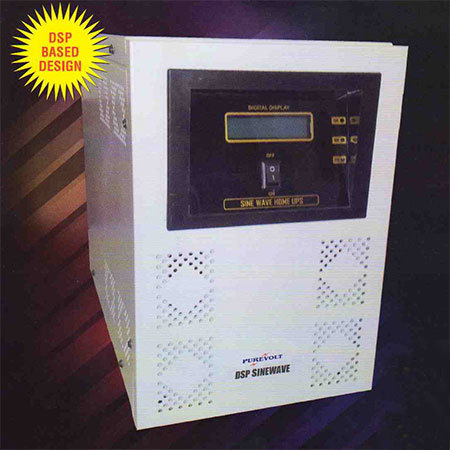

Sine Wave Online Ups

Sine Wave Online Ups
Sine Wave Online Ups
Product Code : 05
Brand Name : PUREVOLT PRODUCTS PVT. LTD
Product Description

Sine Wave Ups/Sine Wave Online Ups

Through our firm determination and hard work, our company has become pertinent provider of Online UPS- Sine Wave. Our skilled masters work regularly in accordance with the set quality guidelines of the field while producing astonishing effectiveness and great quality with set time structure. The provided product is designed from high rating materials and related parts, which are sourced from certified vendors of the prevailing market. Furthermore, clients can purchase our product at leading prices from us.

Features That Attract Customers:

  • Generator compatible, computer sleek plan and broad input window
  • Micro regulator supported design as well as float cum fast charger
  • Computer rating power, damages less than 3%
  • Crystal regulated output rate of occurrence 50± 0.01%.
  • Minimum noise <50db to 10 KVA and additionally IGBT founded Hi-repetition PWM outline
  • Smooth start amenity as well as inverter productivity is 92%.

Why Choose Us?

  • Offered Sine Wave Ups are sound and protected so its working is more protected too
  • Over load safety as well as short circuit safety are the main variables of our provided product
  • Great backup ability is its unique attribute, hence, it is immensely in demand
  • We provide our each product at market leading costs in the worldwide marketSine Wave Online Ups

Technical Details of Sine Wave Online Ups/Sine Wave Ups


Model 1 KVA 2 KVA 3 KVA
AC Output PARAMETERS
INPUT Voltage 120 V at 30%, 140 V at 50% & 160, 295 V at 100%
Output Voltage 230V AC single Phase or 415V AC three Phase
Frequency 50 Hz (60 Hz) + - 2 %
Adjustable Range + - 10 V AC
OUTPUT Voltage 220 V AC (230 V AC) + - 3%
Voltage Stability ± 1% for DC input variation & Output load variations
Current 4.55 A 9.1 A 13.6 A
Frequency 50Hz ± 0.05 Hz (Crystal Controlled) OR
60Hz ± 0.06 Hz or any other Optical frequency
Frequency 50 Hz + - 5 %
Wave form Sine wave
Wave form Sine Wave
Harmonic Distortion Less than 3 %
THD Linear Load < 3%Non Linear Load < 6%
Efficiency >93% for 360V DC & above
>90% for 180V DC
>85% for 72/48 V DC
Protection General Electronic protection for Output Overload, Short Circuit,Over Temperature, Battery Low & Over Charge.
Power Factor 0.8 lagging to unity
Surge IEEE527
Overload 110% for 10 minutes, 200% for 5 cycles, 400 % for  Cycles.
EMI/EMC EN50091-1
Crest factor > 4 : 1
Noise FCC.A
Transient Recovery Within 3 Cycles
Alarm Audible Mains Failure, Load on Battery, Inverter Fault
Audible Noise < than 55db at 1 meter up to 10 KVA
< than 60db at 1 meter above 10 KVA
Overload Protection > 130 % - 200 MS > 150 % - 10 MS
AC INPUT PARAMETERS
Transfer Time 0 MS
AC Input Voltage 230 V  20% + 15 % Single Phase(Or as per specific customer requirements)
Battery SMF Battery (Sealed Maintenance Battery)
Frequency 50 HZ + - 10 %
External Battery Voltage 36 V DC 96 V DC 96 V DC
Compatiblity with D.G Sets Can work on generators
Ambient Temperature 0 - 40 Degree C


Humidity 30 ~ 95 % Non Condensing


Communication 9 Pin D type connector (RS 232)


Noise 0 ~ 55 DB (1 m)


Size (WXDXH) mm 145x405x220 195x455x350
